FREECLIMBER 8 Series StairClimber Stepper – StairMaster (9-5260-8FC)

StairMaster 8 Series Freeclimber StairClimber Stepper – The 8 Series Freeclimber StairClimber by Stairmaster is a commercial-rated step machine with independent step motion used to increase heart rate and burn body fat during cardio exercise. Climbing is a challenge of endurance. And the high-intensity, short-duration workout of a StairMaster FreeClimber is unbeatable. Featuring a wide range of programming options in a small footprint, the Free Climber stair climber (formerly called the SC5) is a powerful addition to your workout when used both as part of your circuit training programs or alone. Speed control buttons allow you to increase or decrease the intensity of stepping action at any time during your workout. And with a space-saving design that fits in just 2′ x 4′ of floor space, you can place this step machine in any room in your home.

Stepper Design Features:

• Easy-to-read LCD console displays time, interval timer, level (1-20), heart rate, calories, floors climbed, floors per minute, watts, METs and workout profile
• 10 programmed workouts include Quick Start, Manual, Fat Burner, Calorie Burner, Intervals, Bell-Shaped, Build, Mystery Challenge, Steady, and Heart Rate Zone Trainer.
• Fitness tests include Multi-stage CPAT Fire Fit Test and WFI Test
• Smooth stepping action comes from the electronically controlled alternator with chain drive that precisely controls the pedal descent allowing a wide range of users to exercise smoothly within their comfort zones.
• Quieter step design improves fluidity of stepping motion and provides added cushion for joints.
• One-piece soft pedals offer the ultimate in stepping comfort.
• Handrails are ergonomically designed, which means users experience a natural movement that minimizes impact.
• Independent pedal geometry with four-bar linkage keeps pedals level ensuring a safe, biomechanically correct movement.
• Contact Heart Rate sensors on upper handrails.
• Polar compatible telemetry heart rate monitoring. Chest strap not included.
• Console Accessories include reading rack, dual water bottle holders and accessory tray.
• Additional Features include integrated service light and personal fan.

STANDARD LCD Display Features:

The LCD display provides all the functionality you need in a sleek, modern package. With standard features like Bluetooth connectivity, VA glass and USB charging, this is the LCD screen that is anything but standard.

• Bluetooth connection for user workout data tracking
• ANT+ connectivity
• USB charging port
• Multiple program options
• Pre-wired for ECOFIT asset management solution
• Pre-wired for 8-Series Personal Viewing Screen (PVS) entertainment option with ATSC/NTSC tuner
• Compatible with tablet holder option
• Compatible with 800/900mHZ receiver option

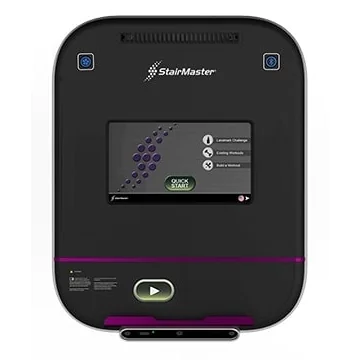

UPGRADED OpenHub™ 10″ Embedded Touchscreen Console Features:

The 10″ touchscreen display adds a premium look and experience to the StairMaster line. For the facility that is looking for the premium look and feel of a touchscreen console, but doesn’t want to pay for embedded TV, media streaming and other add-on features, the 10″ is a great option.

• Bluetooth connection for user workout data tracking
• USB charging port
• Multiple program options including the Landmark Challenge which lets users climb famous buildings from around the world
• Pre-wired for ECOFIT asset management solution
• Pre-wired for 8-Series Personal Viewing Screen (PVS) entertainment option with ATSC/NTSC tuner
• Compatible with tablet holder option
• Compatible with 800/900mHZ receiver option

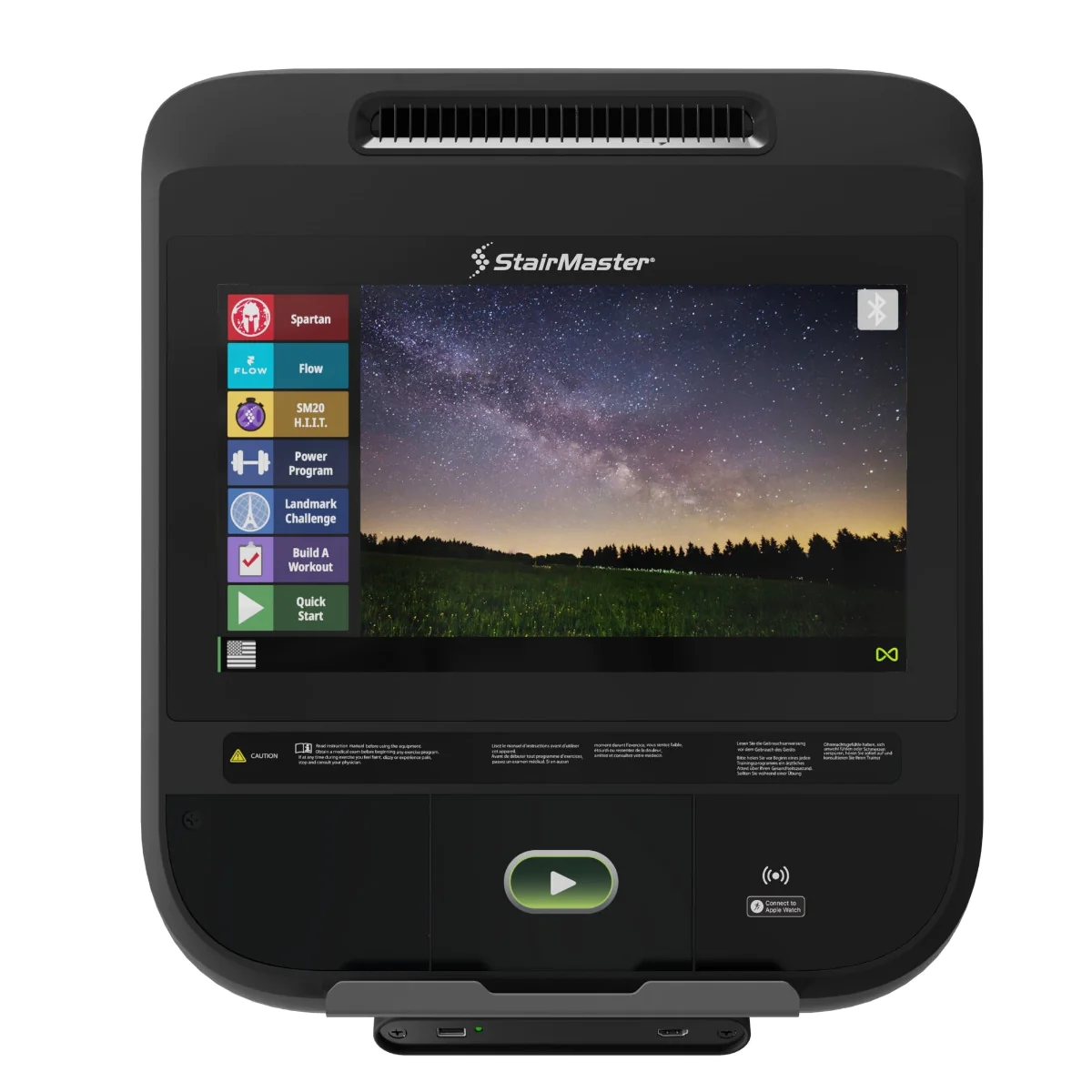

UPGRADED OpenHub™ 15″ Embedded Touchscreen Console Features:

The re-imagined 15″ embedded touchscreen display with capacitive touch adds a premium new look and experience to the already-great StairMaster cardio line. The new embedded console offers a new user interface design, StairMaster 20 HIIT Programming, RunTV and web-based media access for news, entertainment and workout motivation. With standard features like HDMI streaming, Bluetooth connectivity and TV tuner options, this is a display that has something for every user.

• Global TV tuner options
• Set Top Box Ready display option works with any A/V set up that uses a Set Top Box for each piece of equipment, such as IPTV and Satellite
• Bluetooth connection for user workout data tracking
• Apple Gymkit connectivity on Apple Watch
• USB charging port
• HDMI streaming from personal device (with HDMI cable, not included)
• Multiple program options
• Landmark Challenge Program where users climb well known landmarks from around the world like the Eiffel Tower, Statue of Liberty, and the Taj Mahal
• StairMaster 20 HIIT Program designed by World Record Holder, Olympic Trails Qualifier and Master Trainer, Sonja Friend-Uhl
• RunTV provides access to a curated collection of virtual environments, fitness videos, feature films and more
• Pre-wired for ECOFIT asset management solution

OpenHub™ Advantages (Touchscreen models):

Entertainment (15″ Screen): Browse the web or stream music and video directly to the OpenHub™ console from your own phone or tablet. You can also watch television on the oversized 15″ embedded screen (or by adding the optional personal viewing screen to the standard LCD model).

Asset Management: OpenHub™ can utilize various 3rd party asset management systems that allow facility operators to track equipment use and stay on top of maintenance. If your facility already utilizes an asset management solution, chances are OpenHub™ can communicate with it too.

Workout Data Tracking: Personal fitness data tracking is available via Bluetooth connection. OpenHub™ consoles can push data to personal smart devices, connecting users with a world class data ecosystem.

Competition & Games: Group Display functions can be used for a variety of competition and games. Bluetooth and Ant+ signals support data collection and display by 3rd party partner products.

Club Solutions: OpenHub™ offer tons of features and solutions to meet the unique needs of every facility. The flexibility of the console allows for additional features to be added at any point, meaning you can get and pay for what you want, when you want it. No other manufacturer offers the affordable range of connectivity as StairMaster.

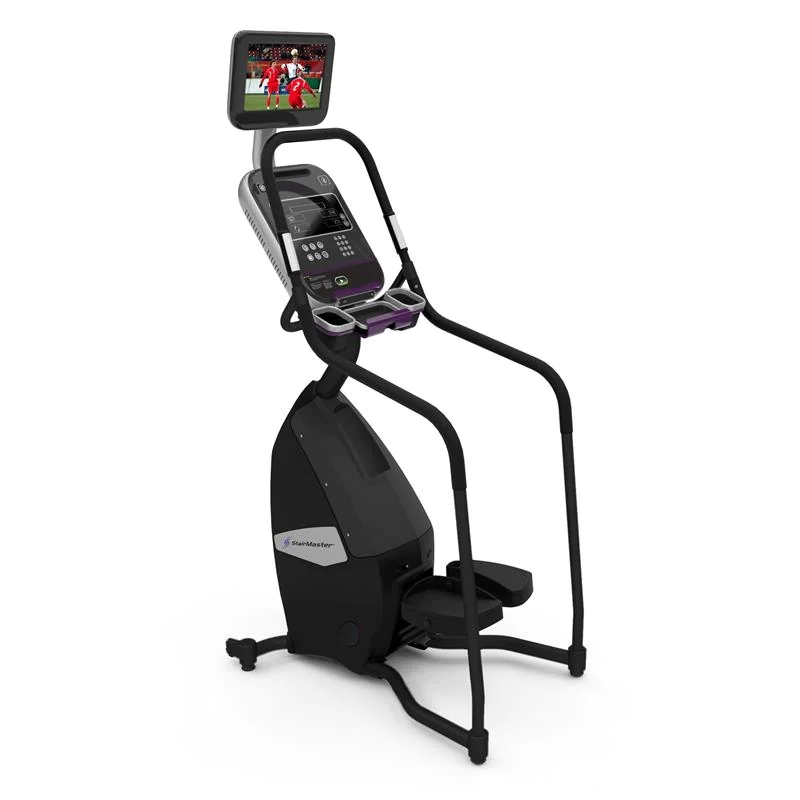

OPTIONAL 15.6″ Personal Viewing Screen (for LCD Console ONLY):
The 8-Series LCD Display is pre-wired to accept an add-on 15.6″ HD Personal Viewing Screen from MYE Entertainment. The PVS mounts seamlessly to the product, and an integrated control keypad inserts into the front of the cardio display for easy control. With the 8-Series, the PVS includes an HDMI port to support streaming from users personal device to screen.

FREECLIMBER Specifications:

• Frame Color: Hammertone Black steel frame finish
• Step range: 1″ to 14″ (2.5cm to 36cm)
• Step rate: 26 to 174 steps per minute
• Power requirements: Input Voltage 100-240 VAC 50/60 Hz 100 VA
• Maximum user weight: 350 lbs (159 kg)
• Product dimensions: 43″ L x 27″ W x 68″ H (109cm L x 68cm W x 173cm H)
• Machine weight: 155 lbs (70 kg)
• Carton dimensions: 45.8″ L x 29.8″ W x 38.9″ H (116.3cm L x 75.7cm W x 98.9cm H)
• Carton weight: 178 lbs (81 kg)
• Shipping dimensions (on pallet): 48″ L x 48″ W x 60″ H (Freight Shipping Class 175)
• Shipping weight: 349 lbs.

Commercial Warranty:

• Frame: 15 years
• Parts: 3 years
• Labor and Wear Items: 1 year
